What came in

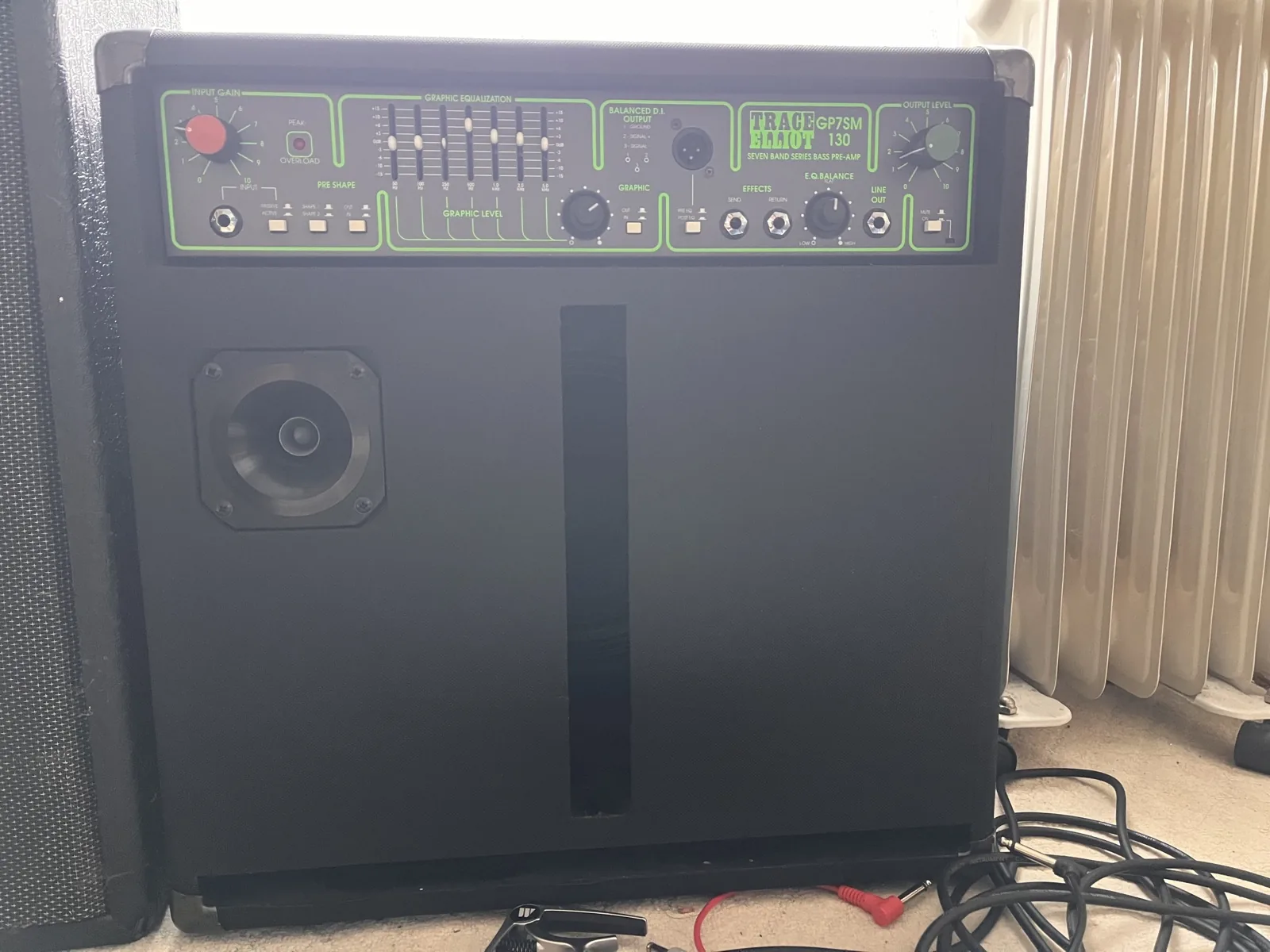

This one is personal. The Trace Elliot GP7SM 130 is my own amp — a bass combo I've owned since I was seventeen. It's done more rehearsals, gigs, and late-night sessions than I can count, and it's always delivered. So when smoke started pouring out of the back mid-song — mid Hotel California, of all things — it was a horrible moment.
The amp shut down and didn't come back up. It went straight to the bench.
What we found

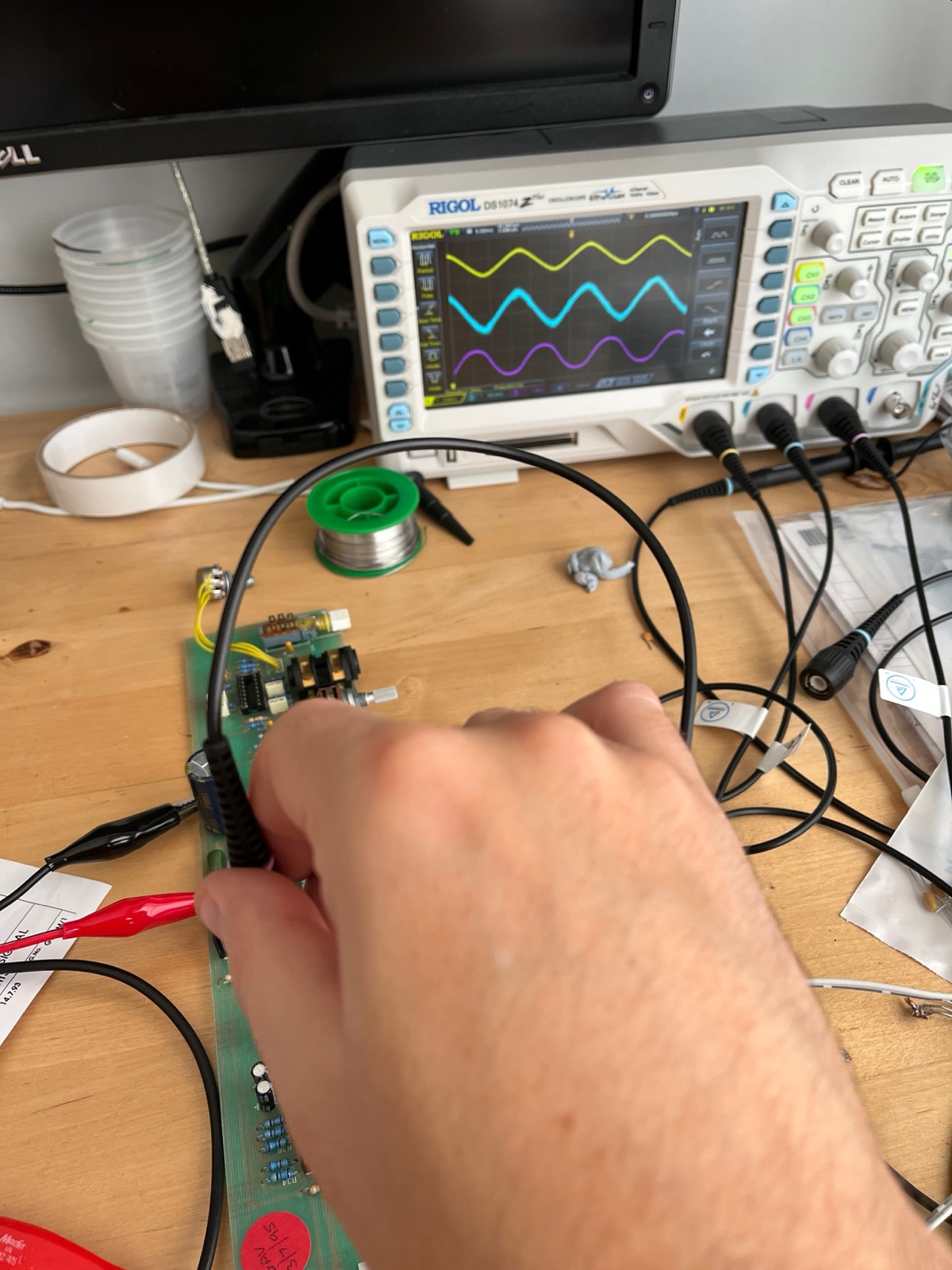

The first thing to check on any amp that's gone down suddenly is whether the fault is obvious. In this case, R47 — the 330-ohm 4-watt wirewound resistor — had scorched badly and was the most visible casualty. But resistors don't cook themselves without a reason, and testing quickly showed this was a symptom, not the cause.
The power supply rail on this board is designed to run at ±30V. Measuring it told a different story: the positive rail was sitting at 50V. Something had failed and let the full unregulated supply voltage straight through to the entire main PCB.
The culprit was TR2 — the BD677 NPN Darlington transistor that sits in the supply regulation circuit. It had failed open. Rather than holding the rail at the correct voltage, it had effectively stepped out of the way and let 50V run into a board designed for 30V.
The resistor R47 was scorched but had, remarkably, survived. The same couldn't be said for the op-amps.
The cascade
The GP7SM preamp uses three TL074 quad op-amp ICs — IC1, IC2, and IC3 — handling everything from the input stage and graphic EQ through to the output drive. Running the board at 50V when the op-amps are rated for a ±30V supply is the kind of stress they don't recover from.
IC1 was completely gone — no output, no response. IC2 had partially failed; one half of the chip was working, the other wasn't. IC3 and IC4 were replaced as a precaution given the overvoltage they'd been exposed to, even though they appeared functional on the bench.

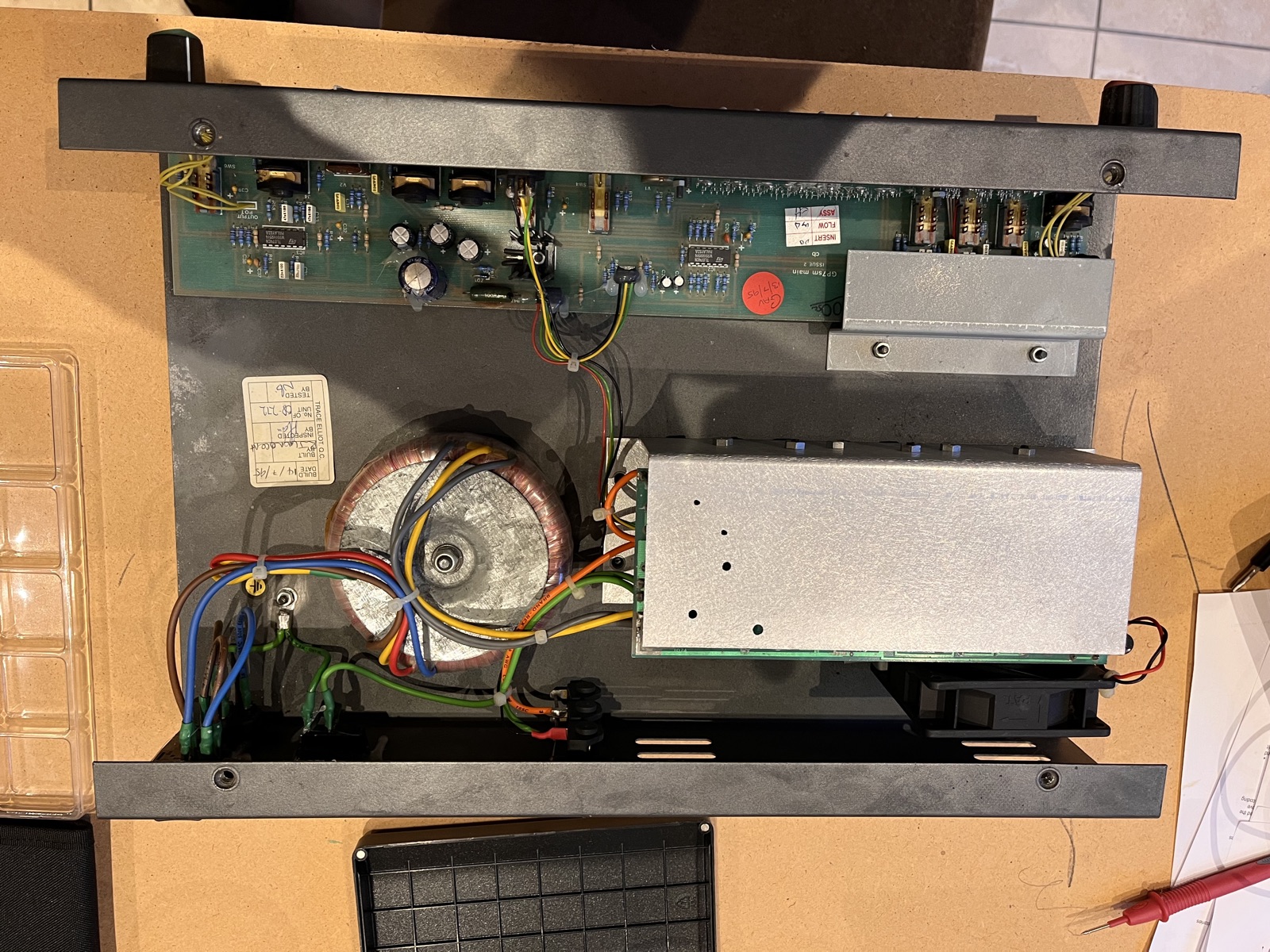

While the board was out, the main filter capacitor in the power supply was inspected and found to be bulging at the top — a reliable sign that it was nearing end of life and would have caused problems of its own before long. Two further electrolytics, C26 and C28, were also replaced.
What was done
TR2 was replaced with a new BD677. The power rail was verified back at ±30V before anything else was reconnected.
IC1, IC2, IC3, and IC4 were all removed and replaced with fresh TL074s. To make future servicing straightforward, IC sockets were fitted to the board — if an op-amp ever needs replacing again, it's a straight swap with no soldering required.
The main filter capacitor was replaced, along with C26 and C28. R47 was inspected, confirmed intact, and left in place.

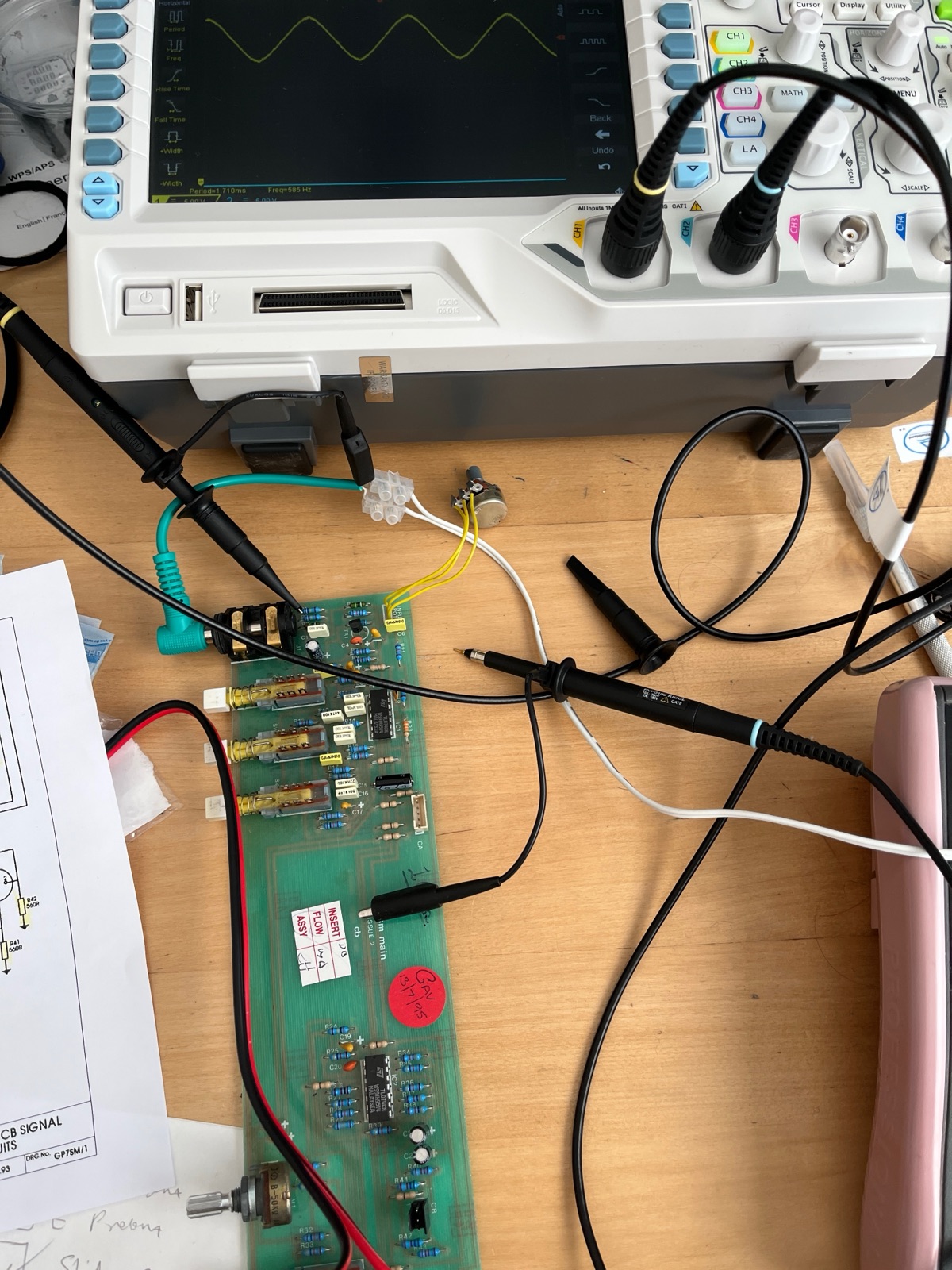

The board was reassembled, powered up, and tested through the oscilloscope. Signal was clean and correct across all stages. The graphic EQ and preamp sections were verified working on all channels. The amp was rebuilt into the cabinet and put through a full test.
Parts replaced
| Reference | Component | Reason |
|---|---|---|
| TR2 | BD677 NPN Darlington transistor | Open circuit — primary fault |
| IC1 | TL074 quad op-amp | Destroyed by overvoltage |
| IC2 | TL074 quad op-amp (half) | Partially failed |
| IC3, IC4 | TL074 quad op-amps | Replaced as precaution |
| C26 / C28 | 220µF 25V electrolytic capacitors | Replaced proactively |
| Main filter cap | Large electrolytic (power supply) | Bulging — replaced |
How it left
Back in service and sounding exactly as it should. The cause of the whole cascade — a single loose screw that had fallen from somewhere inside the cabinet and rolled under the main PCB, bridging a track to chassis — was found and removed. Something that small, causing that much damage.
The amp is now better protected than it was. The op-amp sockets mean any future IC failure is a five-minute job. The electrolytic replacements give it fresh headroom on the power supply. And it's back doing what it's always done.
A loose screw is about the most mundane thing you can find inside an amplifier. This one very nearly ended a bass amp that had been gigged and rehearsed for decades. The lesson is worth remembering — if your amp is going in for a service, it's worth asking for the inside to be inspected and cleaned, not just the circuits tested. The things that cause the most damage are often the simplest.
