TC Electronic SCF —
Mains Cable Fault

What came in

The TC Electronic SCF — Stereo Chorus+ Pitch Modulator & Flanger to give it its full name — is a bit of a legend. TC Electronic's first ever product, designed in Denmark in 1976 by brothers Kim and John Rishøj, it was born out of frustration with the noise levels of effect pedals at the time. The goal was simple: make something that sounded genuinely professional, with none of the hiss and grunge that plagued everything else on the market.

It worked. The SCF became a fixture on professional rigs for decades — Eric Johnson being perhaps its most famous advocate, using it for the shimmering chorus tones that define tracks like Cliffs of Dover. The circuit has remained essentially unchanged since the original, right through to the SCF Gold reissue TC still sells today.

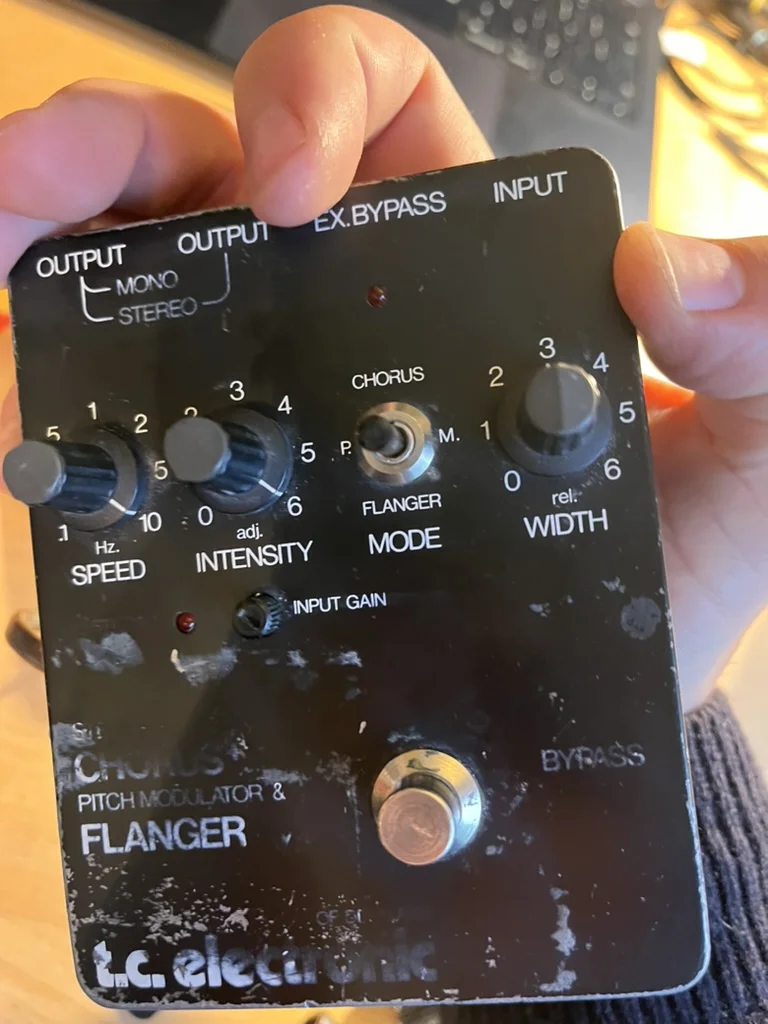

This one is a 1980s original. PCB reference TC-CF-4-L, serial 023582. Fully analogue, mains-powered — not a 9V pedal, an actual transformer and rectifier inside a metal enclosure. It's heavier than you'd expect, and feels like it was built to outlast everything else on your pedalboard.

Which, mostly, it has.

What we found

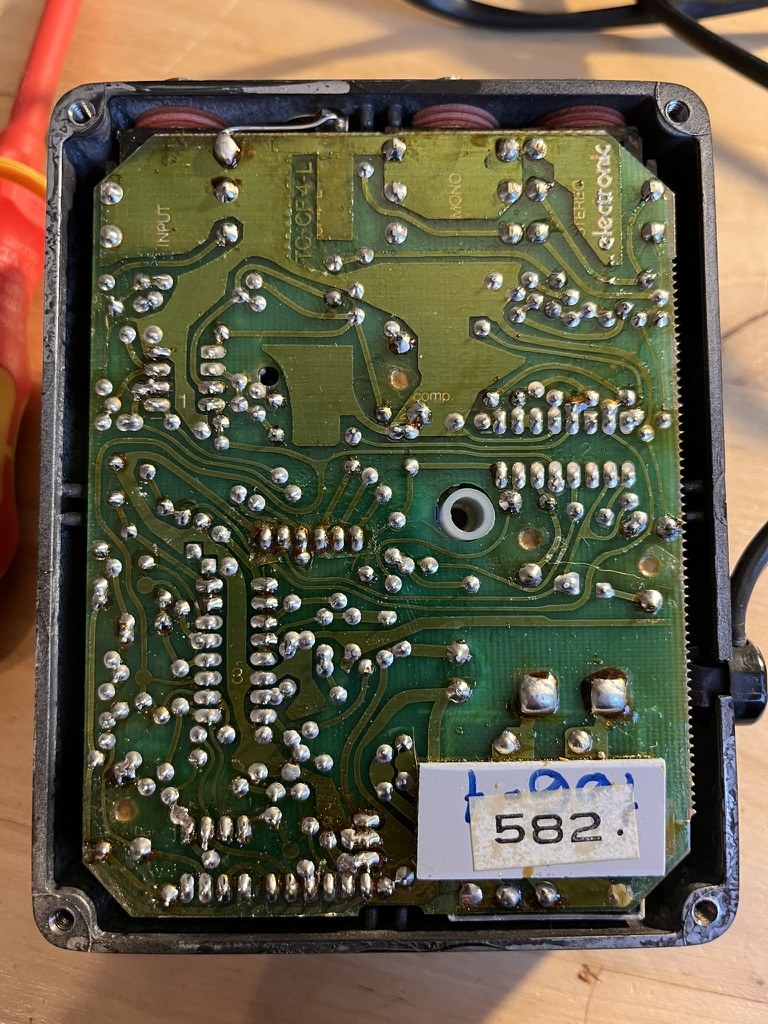

With no fault description to go on, the first job was to open it up and have a look. The board came out cleanly. The solder side showed the kind of honest aging you'd expect — a little flux residue here and there, a couple of joints with the slightly dull look of thermal stress over many years. Nothing alarming.

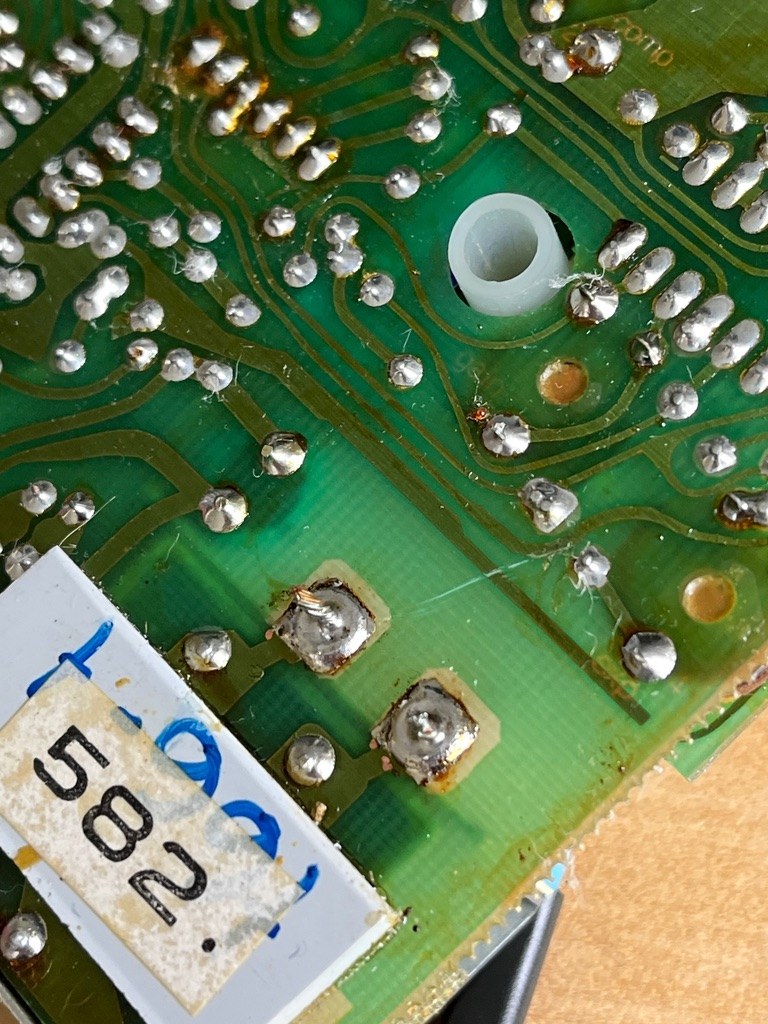

The mains termination pads told a clearer story. Both joints showed brown residue and mild corrosion, consistent with years of heat cycling. These are the two points where the mains cable solders directly to the PCB — no connector, just cable to board — and they'd clearly seen some stress.

Then came the component side

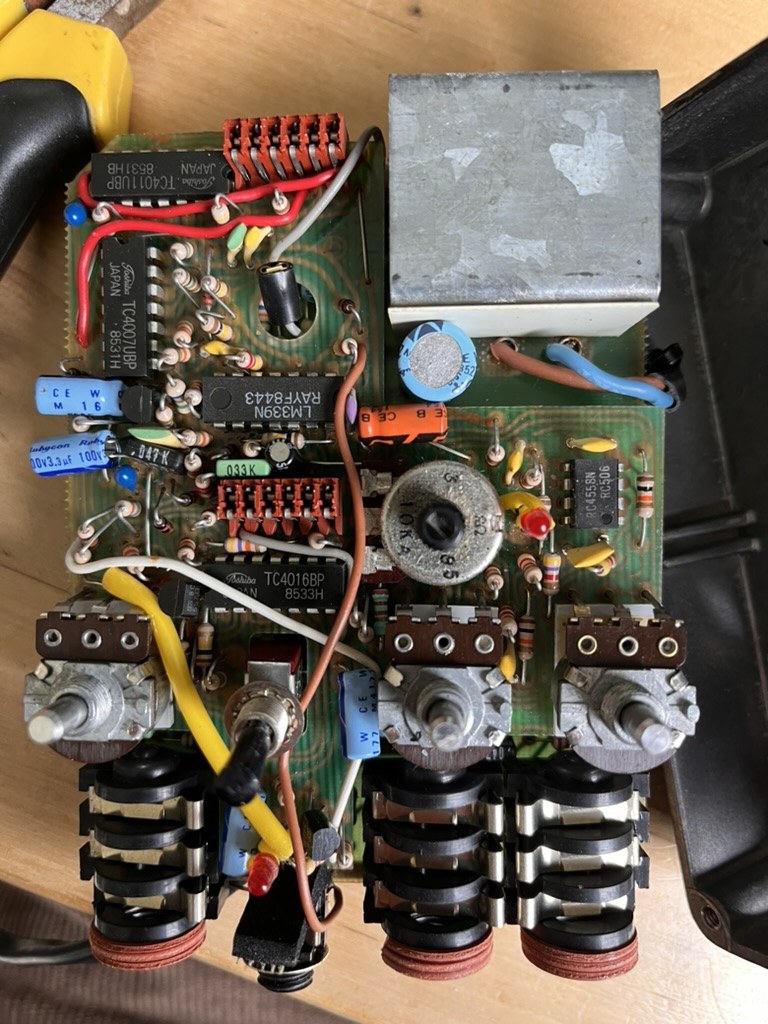

All original. Every IC present and correct: TC4011UBP, TC4007UBP, LM339N, TC4016BP, TC4558N — and crucially, the MN3007 Bucket Brigade Device chip that gives the SCF its sound. No prior repairs. No modifications. Whoever had owned it previously had clearly left well alone.

The fault revealed itself when we started flexing the mains cable. Movement at the case entry point caused an intermittent open-circuit — the effect cutting in and out with the cable's position. A fractured core inside the insulation, almost certainly the result of repeated bending at the same point over many years. Classic cable fatigue.

What was done

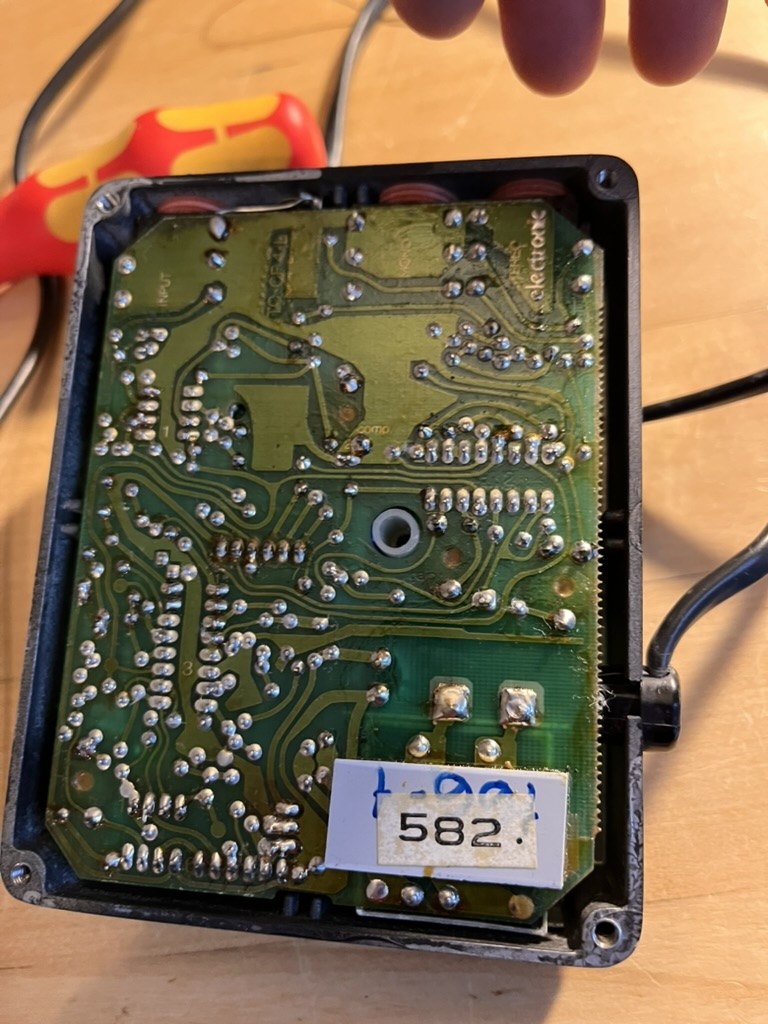

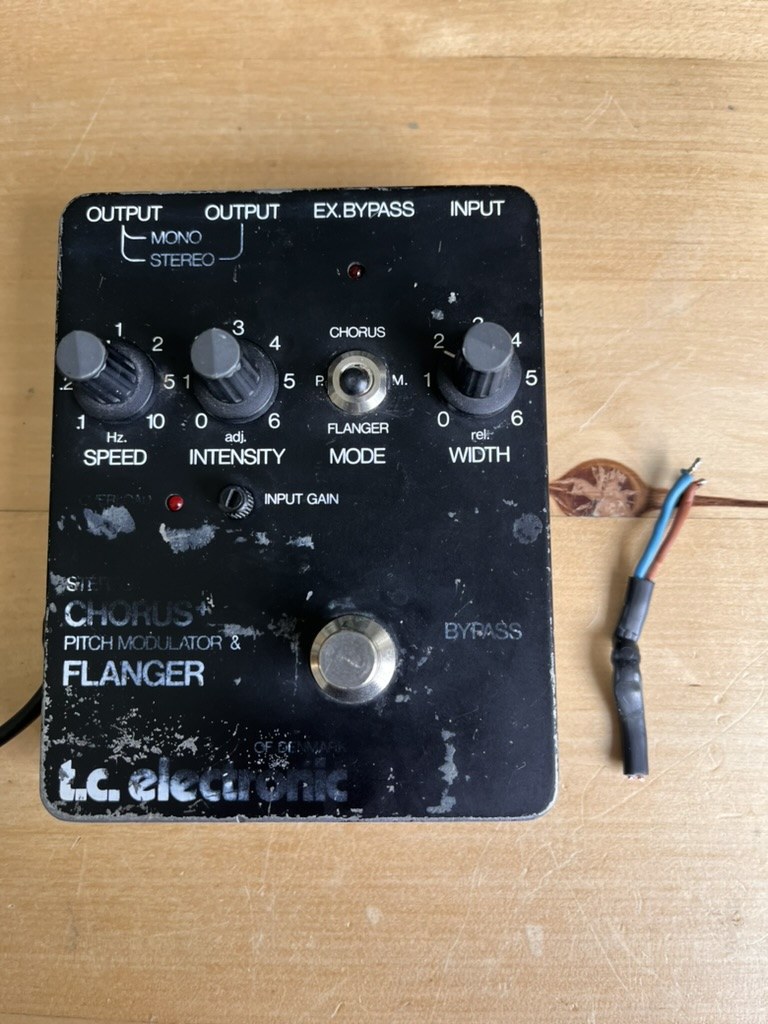

The fix was straightforward. The damaged portion of the cable was cut back past the break, the cores stripped and re-tinned, and the cable re-terminated to the PCB pads. The termination pads themselves were cleaned of corrosion residue and both joints reflowed with fresh solder. Strain relief at the case entry point was checked and confirmed good — important on a mains-powered unit, since a secure entry point is what stops this fault recurring.

A word on the safety side: this unit has a metal enclosure but no protective earth conductor. That might sound alarming, but it's by design — the SCF relies on transformer isolation rather than earthing, which is a legitimate approach known as Class II. It predates CE marking requirements, and it's not something we'd change. What we did ensure is that the mains terminations are sound and the cable is properly secured. On a unit like this, those two things are non-negotiable.

How it left

Function test passed cleanly. Effect operational in all three modes — Chorus, Pitch Modulator, Flanger. Speed, Width, Intensity and Input Gain all responding correctly. Bypass switching confirmed operational.

What was replaced

• Mains cable — damaged section cut back and re-terminated
• Both mains termination joints reflowed
