What came in

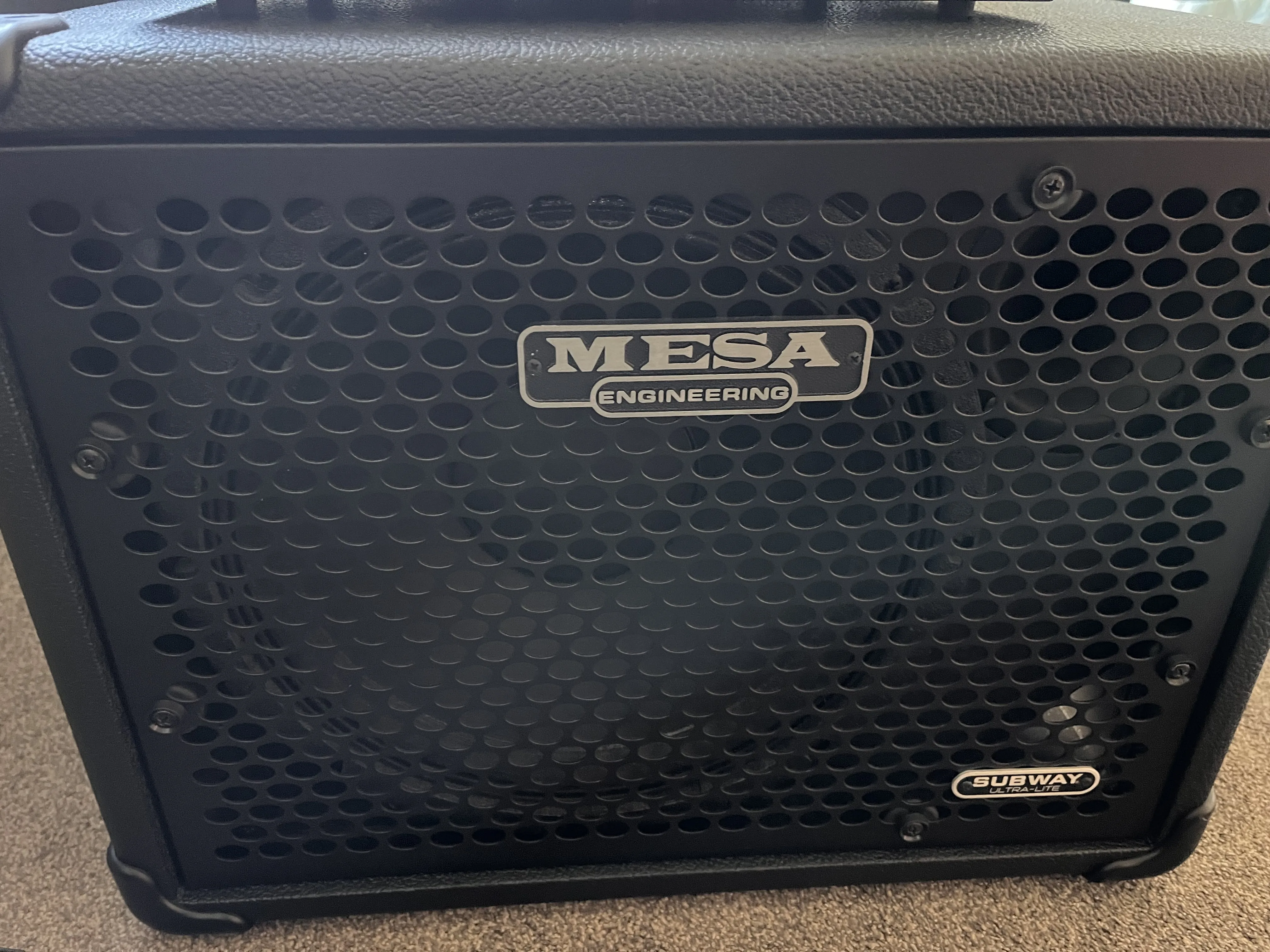

The Mesa Subway Ultra-Lite is one of the better bass cabinets around — a 1x12, 400 watts, impressively light for what it delivers. This one came in with an intermittent input: no signal unless the Speakon connector was held in a specific position or twisted just so. A classic symptom, and one with a straightforward cause.
The customer reported that the cab had become unreliable — sometimes working fine, sometimes producing nothing, and occasionally cutting in and out mid-use. The fault was immediately reproducible on the bench. With a Speakon cable plugged into the input, signal was absent or intermittent. Applying light pressure or rotating the plug restored it. The connection was clearly failing inside the socket itself.
What we found
The input connector is a Neutrik Speakon — the green-bodied NL4 type that Mesa used on this generation of Subway cabinets. These are quality connectors, but like any mechanical contact they wear with use. The locking mechanism and internal contacts take a small amount of force every time a cable is plugged and unplugged, and over time that adds up.

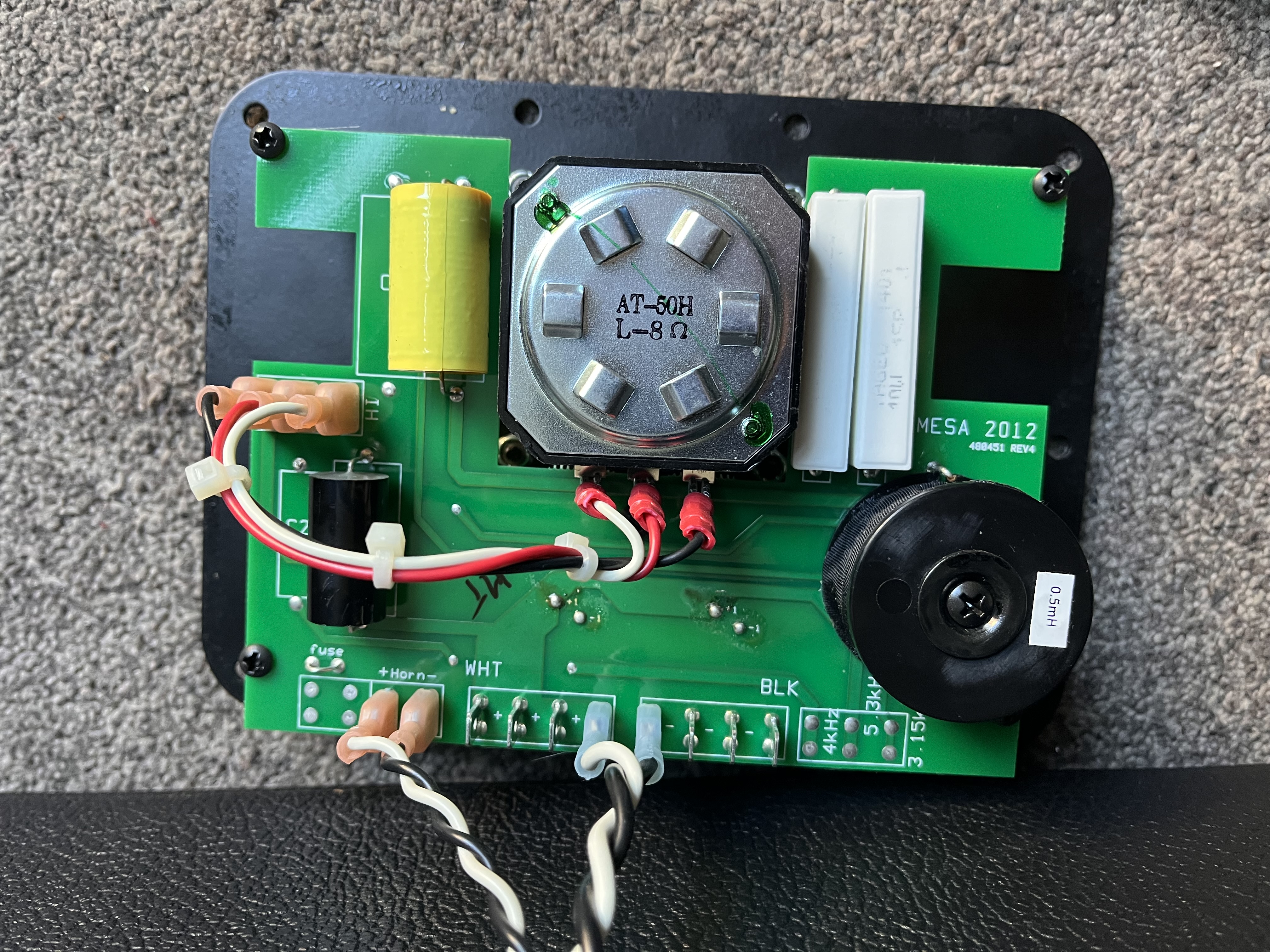

Inspection confirmed the socket contacts were worn and no longer making reliable connection under normal insertion. There was no damage to the wiring or the crossover board — everything else inside was clean and in good order.
What was done

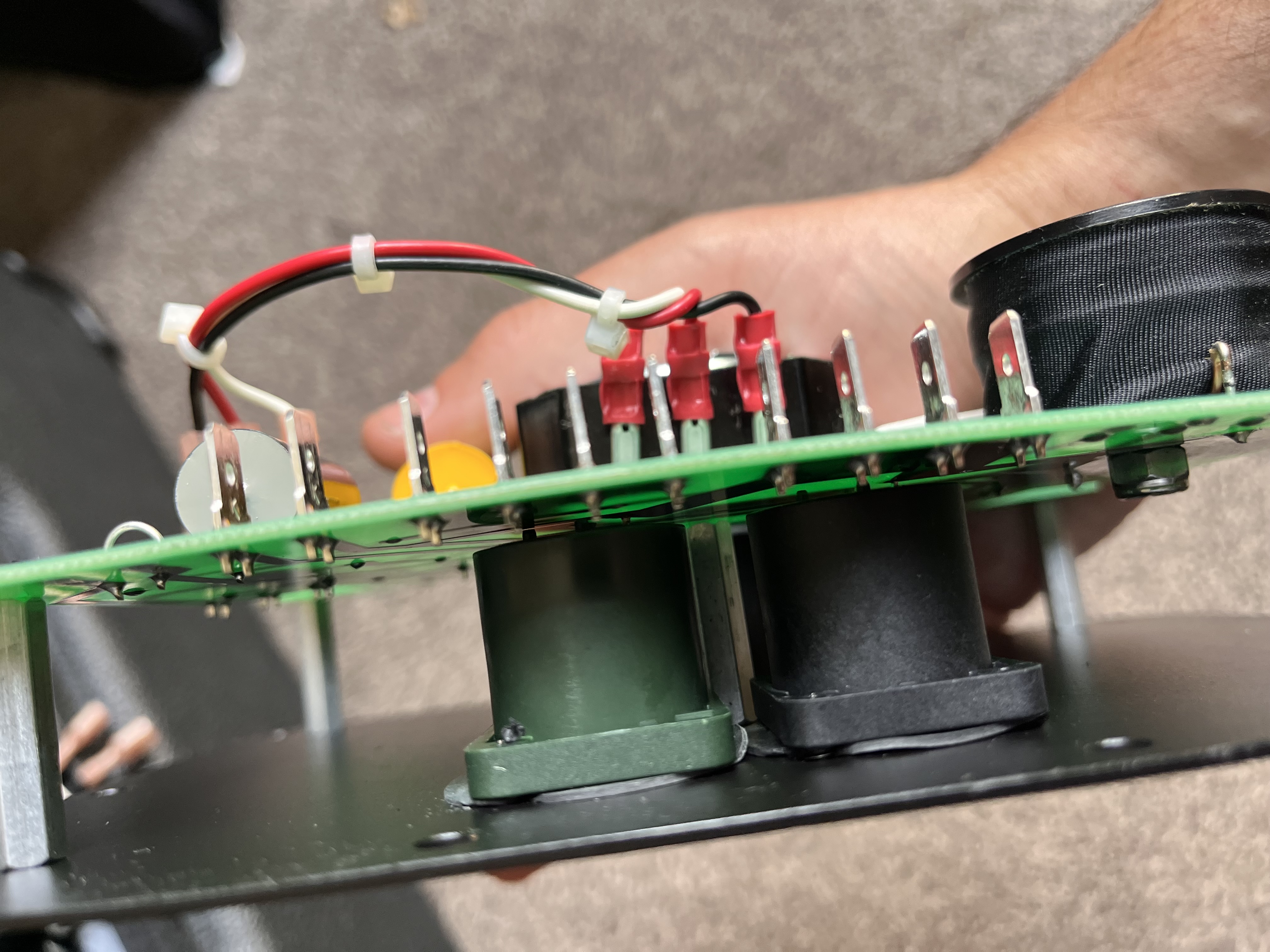

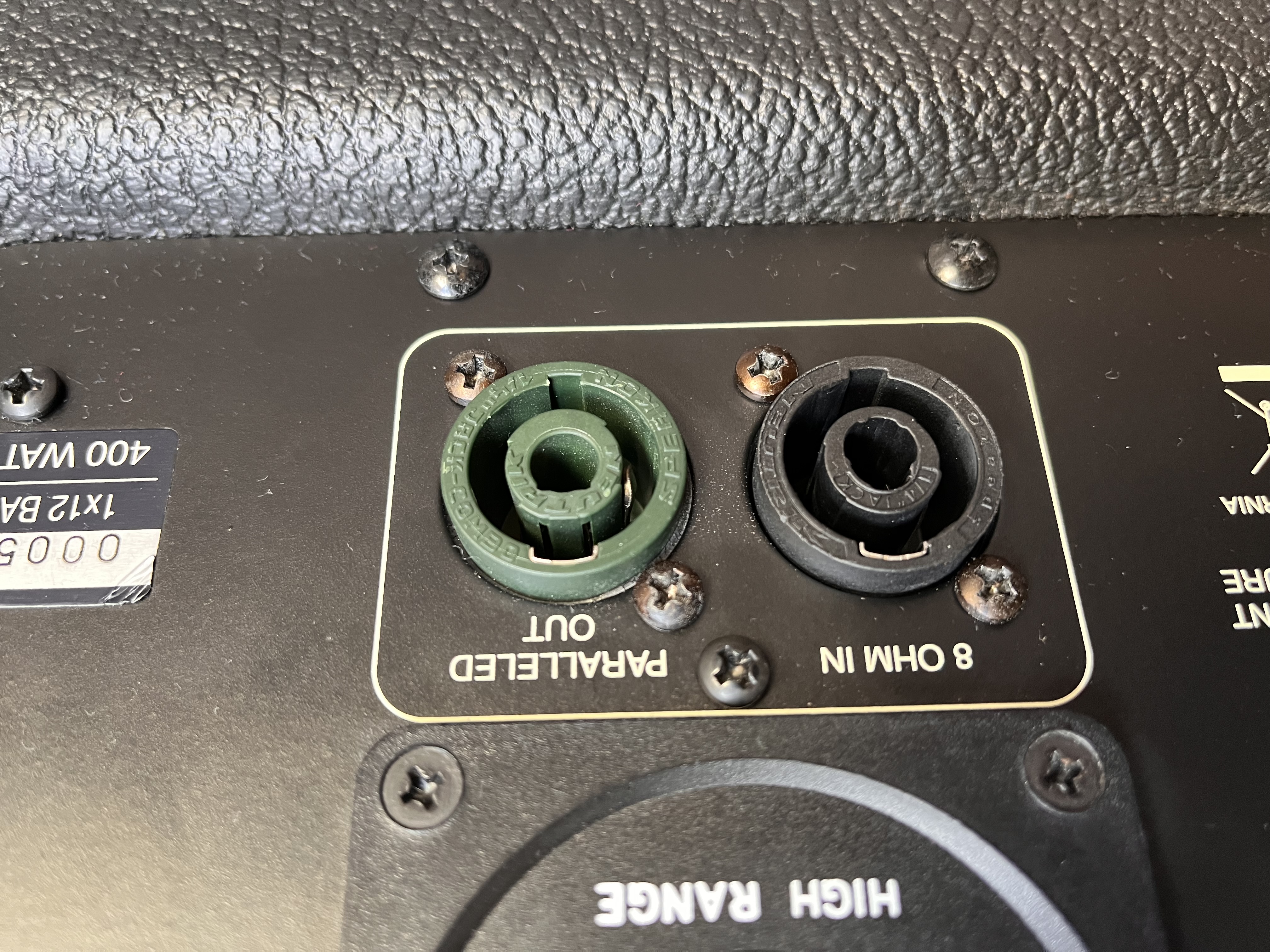

The green Neutrik Speakon was removed and replaced with a new black-bodied Neutrik NL4. It's worth noting that the green connector has been discontinued by Neutrik — the black version is the current production part and represents a revised design. Electrically identical, mechanically improved, and a direct fit.
The replacement was fitted, wiring reconnected, and the cabinet tested with a full signal through the input. Connection solid, no intermittency, no movement required.
How it left
Fully working. A straightforward job — one connector, clean internals, nothing else requiring attention. The Subway is a cab that's built to last, and with the input socket renewed it should give plenty more service.
A note on Speakon connectors
Intermittent Speakon connections are one of the more common faults on bass cabs that get regular use. The connectors are robust, but they're not immune to wear — particularly on cabs where the same input sees a cable plugged and unplugged at every rehearsal and gig. If your cab is becoming fussy about how the cable sits, it's worth getting the socket looked at sooner rather than later. Left long enough, worn contacts can cause signal dropout on stage, which is the worst time to find out.
